Technical Specifications


| Long Haul Bike Racks | Wide Body Bike Racks | Trike Racks |

Long Haul Bike Rack Technical Specifications
Model #
Wheelbase
Weight
No-Wobble Feature
Fits Wheel Size
Max Load Capacity
Materials

Min
Inches
Max
Inches
lbs.

Inches
lbs.

1LH1
39
72
33
Spool Head threaded hitch pin
16 - 29
50
Carbon Steel and Stainless Steel
1LH1-2
39
72
35
Spool Head threaded hitch pin
16 - 29
50
Carbon Steel and Stainless Steel
2LH1
39
72
54
Spool Head threaded hitch pin
16 - 29
100
Carbon Steel and Stainless Steel
2LH1-2
39
72
56
Spool Head threaded hitch pin
16 - 29
100
Carbon Steel and Stainless Steel

Wide Body Bike Rack Technical Specifications
Model #
Weight
(lbs)
Spacing Between
Support Arms (Inches)
Spacing Between
Bikes (Inches)
No Wobble
Feature
Column Height
(Inches)
Max Load
Limit (lbs)
Materials
WB-1
25
29.5
8.5
Spool Head threaded hitch pin
36
140
Carbon Steel
WB-1-2
25
29.5
8.5
Spool Head threaded hitch pin
36
140
Carbon Steel
WB-TC2
25
29.5
8.5
Hitch-Vise # HT-3 or HT-3N
36
140
Carbon Steel

Trike Rack Technical Specifications
Model #

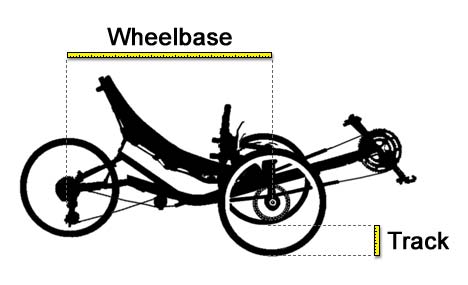

Track
Wheelbase
Weight
No-Wobble Feature
Fits Wheel Size
Max Load Capacity
Materials

Min
Inches
Max
Inches
Min
Inches
Max
Inches
lbs.

Inches
lbs.

HRT1N
24.5
36
33
63
28
Spool Head threaded hitch pin
16 - 26
75
Carbon Steel and Stainless Steel
HRT1-2N
24.5
36
33
63
30
Spool Head threaded hitch pin
16 - 26
75
Carbon Steel and Stainless Steel
HRT1T
24.5
36
33
63
33
Spool Head threaded hitch pin
16 - 26
75
Carbon Steel and Stainless Steel
HRT1-2T
24.5
36
33
63
35
Spool Head threaded hitch pin
16 - 26
75
Carbon Steel and Stainless Steel
TB1-2WH
Trike: 24.5
Bike: N/A
Trike: 36
Bike: N/A
Trike: 33
Bike: 39
Trike: 63
Bike: 72
52
Spool Head threaded hitch pin
Trike: 16 - 26
Bike: 16 - 29
100 (60 trike, 40 bike)
Carbon Steel and Stainless Steel
TB1WH
Trike: 24.5
Bike: N/A
Trike: 36
Bike: N/A
Trike: 33
Bike: 39
Trike: 63
Bike: 72
50
Spool Head threaded hitch pin
Trike: 16 - 26
Bike: 16 - 29
100 (60 trike, 40 bike)
Carbon Steel and Stainless Steel
TB1WB
Trike: 24.5
Bike: N/A
Trike: 36
Bike: N/A
Trike: 33
Bike: N/A
Trike: 63
Bike: N/A
51
Spool Head threaded hitch pin
Trike: 16 - 26
Bike: N/A
100 (60 trike, 40 bike)
Carbon Steel and Stainless Steel
TB1-2WB
Trike: 24.5
Bike: N/A
Trike: 36
Bike: N/A
Trike: 33
Bike: N/A
Trike: 63
Bike: N/A
53
Spool Head threaded hitch pin
Trike: 16 - 26
Bike: N/A
100 (60 trike, 40 bike)
Carbon Steel and Stainless Steel
SLTR1
24.5
36
33
63
34
Spool Head threaded hitch pin
16 - 26
75
Carbon Steel and Stainless Steel
SLTR1-2
24.5
36
33
63
38
Spool Head threaded hitch pin
16 - 26
75
Carbon Steel and Stainless Steel
2HRT1
24.5
36
33
63
49 *
Spool Head threaded hitch pin
16 - 26
120 (60 per position)
Carbon Steel and Stainless Steel
2HRT1-2
24.5
36
33
63
51 *
Spool Head threaded hitch pin
16 - 26
120 (60 per position)
Carbon Steel and Stainless Steel
* Note: Total rack weight is reduced to 33 lbs. when top trike carrier is removed and rack is used as a 1 trike rack.
